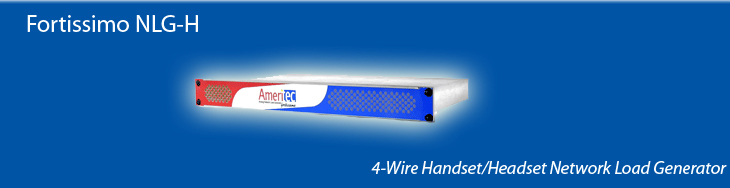

The Fortissimo is a network load generator that simulates telephony subscribers placing calls
into the network by connecting through the IP telephone set. The unit gives the user flexibility to
serve a wide range of applications associated with switch and network testing. Ideally suited to
allow the user to develop a test environment with the ability to test highly complex call scenarios
and interactive applications under high call loads on hundreds of lines simultaneously in a
dedicated lab environment.
- How Does It Work?
-
The actions of each simulated subscriber are independently controlled through unique parameter
fields defined in user programmed Call Scripts. Call Scripts include capabilities for testing
signaling, dialing, Voice over Packet, QoS (GMOS, G-PSQM, R-Factor) digit decoding, tone
sending, path verification, and tone receive. The Scripts define calling patterns and can simulate
practically any action a live caller can perform. Scripts can also simulate multiple subscribers
allowing testing of multiple-party calls such as conference calling.
The Ameritec Conductor GUI, a Windows® based Graphical User Interface, allows the user to
create test systems. The user is now able to create a battery of tests, create traffic profiles, load
test cases, view test results and create reports.
With the addition of the Ameritec XpresScript the user is able to develop sophisticated test
scripts by simply drawing the test sequence. Call Scripts are easily developed by dragging,
dropping and interconnecting icons to create a graphical Call Flow Diagram. This Call Flow
Diagram can easily be loaded into the Fortissimo using the Conductor.
- What Does It Do?
-
The Ameritec Fortissimo has the ability to simulate high volumes of subscriber calls. This high
volume of bulk call generation can be combined with complex call testing capability. Through the
use of user defined call scripts and line protocols, users can tailor test scenarios to meet a wide
range of testing requirements.
Subscribers can be simulated on 48, 4-wire handset/headset circuits via software selectable
parameters.
- What Can It Test?
-
Applications that previously were too costly to test automatically can now be easily automated
with the Fortissmo.
- Telephone to Telephone Quality of Service Testing
- 3rd Generation Voice Over Packet Systems
- Etc.
