- What Is It?
-

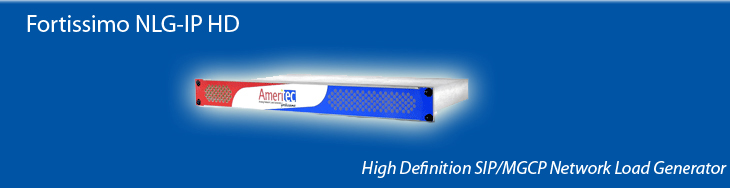

The Fortissimo is a SIP network load generator that simulates high-definition (HD) SIP subscribers placing calls into
the network. The unit gives the user flexibility to serve a wide range of applications associated
with switch and network testing. Ideally suited to allow the user to develop a test environment
with the ability to test highly complex call scenarios and interactive applications under high call
loads on hundreds of lines simultaneously in a dedicated lab environment.
- How Does It Work?
-
The actions of each simulated subscriber are independently controlled through unique parameter
fields defined in user programmed Call Scripts. Call Scripts include capabilities for testing
signaling, dialing, Voice over Packet, QoS (GMOS, G-PSQM, R-Factor) digit decoding, tone
sending, path verification, and tone receive. The Scripts define calling patterns and can simulate
practically any action a live caller can perform. Scripts can also simulate multiple subscribers
allowing testing of multiple-party calls such as conference calling.
The Ameritec Conductor GUI, a Windows® based Graphical User Interface, allows the user to
create test systems. The user is now able to create a battery of tests, create traffic profiles, load
test cases, view test results and create reports.
With the addition of the Ameritec XpresScript the user is able to develop sophisticated test
scripts by simply drawing the test sequence. Call Scripts are easily developed by dragging,
dropping and interconnecting icons to create a graphical Call Flow Diagram. This Call Flow
Diagram can easily be loaded into the Fortissimo using the Conductor.
- What Does It Do?
-
The Ameritec Fortissimo has the ability to simulate high volumes of SIP subscriber calls. This
high volume of bulk call generation can be combined with complex call testing capability.
Through the use of user defined call scripts and line protocols, users can tailor test scenarios to
meet a wide range of testing requirements. Each unit supports 192 SIP subscribers being
simulated with full bearer path testing along with the ability to support registration,
authentication, G.711/G.729 encoding and proxy servers via software selectable parameters.
- What Can It Test?
-
Applications that previously were too costly to test automatically can now be easily automated
with the Fortissmo.
- IP-IP and IP-PSTN Applications
- 3rd Generation Voice Over Packet Systems
- Next Generation Hardware/Software Platforms
- Voice Quality and Integrity
- G.711 and G.729 Applications
- Etc.
